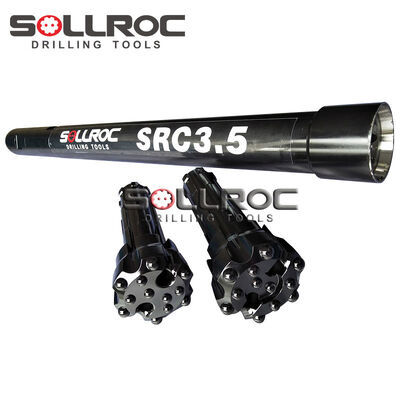

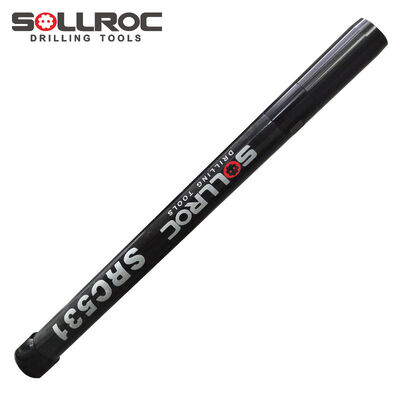

3"-10" Reverse Circulation RC Drilling Hammer (Remet and Metzke Thread)

Name: 3"-10" Reverse Circulation RC Drilling Hammer (Remet and Metzke Thread)
Brand: Changsha Sollroc Engineering Equipments Co., Ltd
Price: 2000 USD
Availability: InStock

همه محصولات

ابزار حفاری DTH
(79)

پایین چکش سوراخ
(182)

مته های DTH
(213)

لوله مته DTH
(58)

چکش گردش معکوس
(133)

قطعه حفاری RC
(134)

لوله حفاری RC دو طرفه
(21)

سیستم حفاری بیش از حد Symmetrix
(8)

سیستم حفاری odex
(27)

دریل بیت را بکشید
(49)

ابزار حفاری چکش بالا
(64)

قطعات دکمه ای کوچیک
(12)

ابزار حفاری هسته الماس
(12)

دستگاه خردکن دکمه ای
(12)

مته تریکن
(18)

گواهی

نظرات مشتریان

من چکش ها و قطعاتم رو دریافت کردم، فوق العاده به نظر ميرسن، بعد از استفاده خوب کار ميکنن، ممنون

—— جان لوئیس

من محصول این شرکت را 110 درصد توصیه می کنم چون در گذشته من 100 درصد نتیجه خوبی از آنها داشتم.

—— "ويسا واتانن"

چت IM آنلاین در حال حاضر

3"-10" Reverse Circulation RC Drilling Hammer (Remet and Metzke Thread)

تصویر بزرگ : 3"-10" Reverse Circulation RC Drilling Hammer (Remet and Metzke Thread)

جزئیات محصول: پرداخت:

مقدار حداقل تعداد سفارش:	1
قیمت:	2000

مخاطب

3"-10" Reverse Circulation RC Drilling Hammer (Remet and Metzke Thread)

شرح

مدل شماره:	RC10A/RC10AR	اندازه ها:	کامل
رنگ:	مشکی	مواد:	فولاد مخصوص
کیفیت:	TOP	بسته حمل و نقل:	کارتن ها + جعبه های چوبی برای صادرات
مشخصات:	3''-6''	علامت تجاری:	SOLLROC
مبدا:	چانگشا، هونان	کد Hs:	84314320
ظرفیت تولید:	1000 قطعه در ماه

About us
We are a leading manufacturer of rock drilling tools, like DTH hammers and bits, DTH drill pipes, RC hammers and bits, tophammer button bits, coupling, cross bits, drill rods located in Changsha, Hunan, China.
We have rich experience in this field of DTH hammers and bits for 20 years.
Owing to high quality, professional serivce and competitive price, we have gotten good reputation from our customers from all over the world, such as France, Spain, Italy, South Africa, Iran, Malaysia, Australia ad etc.

Futures
Manufactured using premium hardened metals for long life;
Maximum material recovery, up to 98%;
No cross contamination of samples;
Handles injection of water, foam, oil, and polymers without performance loss;
Delivers maximum drilling under water.

Product specifications
1) 3" RC hammers: RE531
2) 4'' RC hammers: RE004/RE004R; RE542
3) 5'' RC hammers:RE543,RE545,RE547;PR40,PR52,PR54; MX5456
4) 6'' RC hammers: RC62/RC62R
5) 8'' RC hammers: RC82/RC82R
6) 10'' RC hammers: RC100/RC100R

Technical date

Length (less bit)	1528mm
Weight (less bit)	328.0kg
External diamater	φ240mm
Bit shank	RC10A/RC8AR
Hole range	φ250-φ370
Connection thread	Upon to customers' request
Working pressure	1.5Mpa-3.5Mpa
Air consumption	1.7 Mpa	36 m³/min
	2.4 Mpa	48 m³/min
	3.0 Mpa	65 m³/min

Product specifications: RC Bits

External diameter	Bit shank	Hole range	Connection thread
107mm	RE004	Ø111mm- Ø127mm	3.5"-4" Remet 4" Metzke
120.5mm	PR40	Ø124mm- Ø142mm	3.5"-4" Remet 3.5"-4" Metzke
100mm	RE004/RE004R	Ø104mm- Ø120mm	3.5"-4" Remet 4" Metzke
107mm	42T	Ø111mm- Ø127mm	3.5"-4" Remet 4" Metzke
99mm	HRC45	Ø114mm- Ø127mm	Upon the thread of the drill tube
121mm	PR52	Ø126mm- Ø142mm	4"-4.5" Remet 4"-4.5" Metzke
126mm	PR52	Ø133mm- Ø146mm	Upon the thread of the drill tube
124mm	PR52/PR52R	Ø130mm- Ø146mm	4"-4.5" Remet 4"-4.5" Metzke
130mm	PR54	Ø135mm- Ø150mm	4.5" Remet 4.5" Metzke
126mm	HRC55	Ø133mm- Ø152mm	Upon the thread of the drill tube
146mm	RC62/RC62R	Ø152mm- Ø190mm	Upon the thread of the drill tube
146mm	HRC62	Ø155mm- Ø190mm	Upon the thread of the drill tube
180mm	RC82/RC82R	Ø155mm- Ø190mm	Upon the thread of the drill tube
240mm	RC100/RC100R	Ø250mm- Ø370mm	Upon the thread of the drill tube
109.5mm	RE542	Ø113mm- Ø130mm	3.5"-4" Remet 4" Metzke
116mm	RE542	Ø120mm- Ø135mm	3.5"-4" Remet 4" Metzke
117.5mm	RE545	Ø122mm- Ø135mm	4"-4.5" Remet 4"-4.5" Metzke
124.5mm	RE547	Ø130mm- Ø146mm	4.5" Remet 4.5" Metzke
132mm	MX5456	Ø136mm- Ø150mm	4.5" Remet 4.5" Metzke

RC bits sizes available:
Specification:
1) 3" RC bits diameter 84mm-100mm shank RE531
2) 4'' RC Bits:Diameter 104mm-127mm; Shank type: RE004/RE004R;
RE542
3) 5'' RC Bits:Diameter 113mm-146mm; Shank type: RE543,RE545,RE547;PR40,PR52,PR54; MX5456
4) 6'' RC Bits: Diameter 152-190mm; Shank type: RC62/RC62R;
5) 8'' RC Bits: Diameter190-250mm; Shank type: RC82/RC82R;
6) 10'' RC Bits: Diameter 250-370mm; Shank type: RC100/RC100R.
Other size can be upon to customer's requirements

We can also provide related products DTH hammers and bits, ODEX system, symmetrix systems, slide block drilling systems, etc and DTH drilling pipes for various thread API REG, API IF, BECO, etc

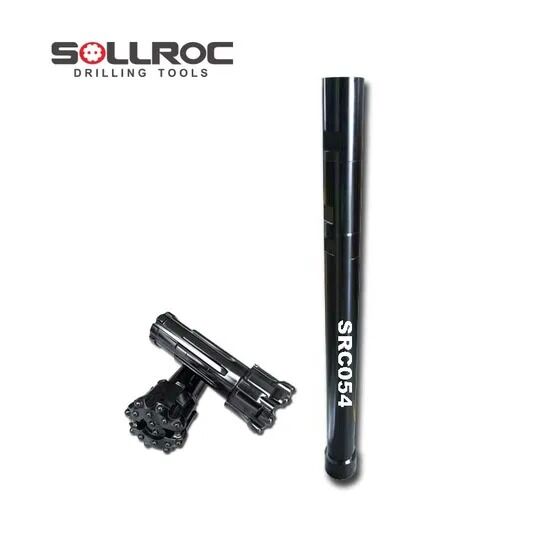

Product photo

Quality warranty
Our products are made of high quality steel and all spares parts are inspected strictly before shipping. We have quickly responses for your complaint and suggestion.

Package
Using ply-wooden cases and pallet for package to protect the products and avoid the damagement during transportation. Also we can customize package according to your special requests.

Production time
Generally need 15-25 days

Transportation
By air, By Express or By sea according to your requests.
