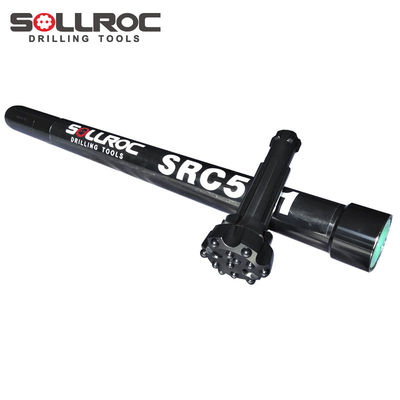

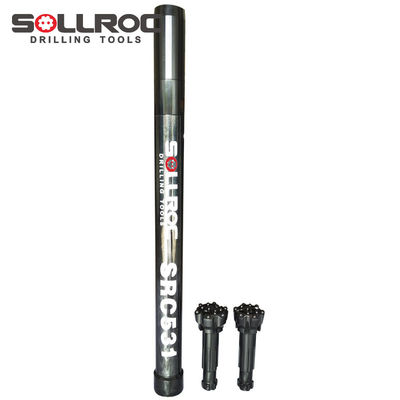

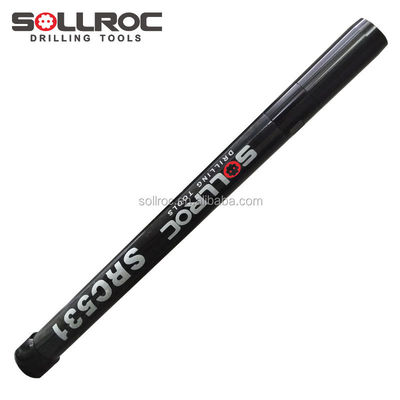

3 inch Down The Hole Hammer with 1069mm Length and 81mm External Diameter for Efficient Drilling

گواهی
چین Changsha Sollroc Engineering Equipments Co., Ltd گواهینامه ها
چین Changsha Sollroc Engineering Equipments Co., Ltd گواهینامه ها
نظرات مشتریان
من چکش ها و قطعاتم رو دریافت کردم، فوق العاده به نظر ميرسن، بعد از استفاده خوب کار ميکنن، ممنون

—— جان لوئیس

من محصول این شرکت را 110 درصد توصیه می کنم چون در گذشته من 100 درصد نتیجه خوبی از آنها داشتم.

—— "ويسا واتانن"

چت IM آنلاین در حال حاضر

3 inch Down The Hole Hammer with 1069mm Length and 81mm External Diameter for Efficient Drilling

3 inch Down The Hole Hammer with 1069mm Length and 81mm External Diameter for Efficient Drilling
3 inch Down The Hole Hammer with 1069mm Length and 81mm External Diameter for Efficient Drilling 3 inch Down The Hole Hammer with 1069mm Length and 81mm External Diameter for Efficient Drilling 3 inch Down The Hole Hammer with 1069mm Length and 81mm External Diameter for Efficient Drilling 3 inch Down The Hole Hammer with 1069mm Length and 81mm External Diameter for Efficient Drilling 3 inch Down The Hole Hammer with 1069mm Length and 81mm External Diameter for Efficient Drilling 3 inch Down The Hole Hammer with 1069mm Length and 81mm External Diameter for Efficient Drilling

تصویر بزرگ :  3 inch Down The Hole Hammer with 1069mm Length and 81mm External Diameter for Efficient Drilling

جزئیات محصول:
محل منبع: هونان ، چین
نام تجاری: SOLLROC
پرداخت:
مقدار حداقل تعداد سفارش: 1
قیمت: $1,000

3 inch Down The Hole Hammer with 1069mm Length and 81mm External Diameter for Efficient Drilling

شرح
وزن: ۲۹ کیلوگرم مادی: فولاد کربن دار
اندازه چکش: 3 اینچ نخ: remet 3 ''
قطر خارجی: 81 میلی متر طول: 1069mm
دامنه سوراخ: 84-105 میلی متر فشار: فشار بالای هوا
فشار: 1.5-3.5Mpa میزان ضربه: 30 هرتز در 2.4MPa
سرعت چرخش: 25-40r/min مصرف هوا: 7-14 متر مربع در دقیقه
ساقه بیت: SRC531 موضوع اتصال: remet 3 ''
نوع ماشین: ابزار حفاری
برجسته کردن:

3 inch Down The Hole Hammer,1069mm Length Down The Hole Hammer,81mm External Diameter Down The Hole Hammer

,

1069mm Length Down The Hole Hammer

,

81mm External Diameter Down The Hole Hammer

High Air Pressure SRC531 RC Reverse Circulation Hammer
Company Introduction
  • Our factory has specialized in manufacturing drilling tools and spare parts for over 10 years
  • We utilize advanced technology and equipment
  • Our technicians have more than 13 years of professional experience
Product Introduction

Reverse circulation drilling efficiently collects uncontaminated samples by transporting them through a hollow pipe system. This method prevents sample contamination from surface materials, ensuring accurate geological analysis.

Technical Specifications
Length (less bit) Weight (less bit) External Diameter Bit Shank Hole Range Connection Thread
1069mm 29.0kg 81mm SRC531 84-100 3''Remet
Working Pressure Impact Rate at 2.4Mpa Recommended Rotation Speed Air Consumption
1.5-3.5Mpa 30HZ 25-40r/min 1.7Mpa: 7 m³/min 2.4Mpa: 10 m³/min 3.0Mpa: 14 m³/min
Product Advantages
  • Reduces overall drilling costs by up to 40% compared to conventional methods
  • Delivers faster results with quick completion of drilling process
  • Safe operation requiring fewer man hours
  • Lower water consumption than other mining methods
  • Simple and easy operation
  • Efficient sample organization with depth and location tracking for precise mineral deposit identification
3 inch Down The Hole Hammer with 1069mm Length and 81mm External Diameter for Efficient Drilling 0 3 inch Down The Hole Hammer with 1069mm Length and 81mm External Diameter for Efficient Drilling 1
Delivery & Packaging

Available shipping methods: By sea, by air, or by express

3 inch Down The Hole Hammer with 1069mm Length and 81mm External Diameter for Efficient Drilling 2 3 inch Down The Hole Hammer with 1069mm Length and 81mm External Diameter for Efficient Drilling 3
Packaging Options
  • Plywood cases
  • Plywood cases with pallet
